Open Single Platform Fiber Laser Cutting Machine: Engineering Reality and Buying Guide
Industrial equipment purchasing should not be driven by emotion or glossy brochures. It is a strict calculation of Capital Expenditure (CapEx) against projected throughput and margin. For metal fabrication shops and OEMs facing tightening margins, floor space constraints, and high operator turnover, an Open Single Platform Fiber Laser Cutting Machine is often the most mathematically sound investment.
This guide strips away industry jargon to objectively dissect the MK-S series. We will analyze the engineering facts, operational realities, and financial implications of this machine, providing you with the data necessary to determine if it is the correct strategic fit for your production floor.

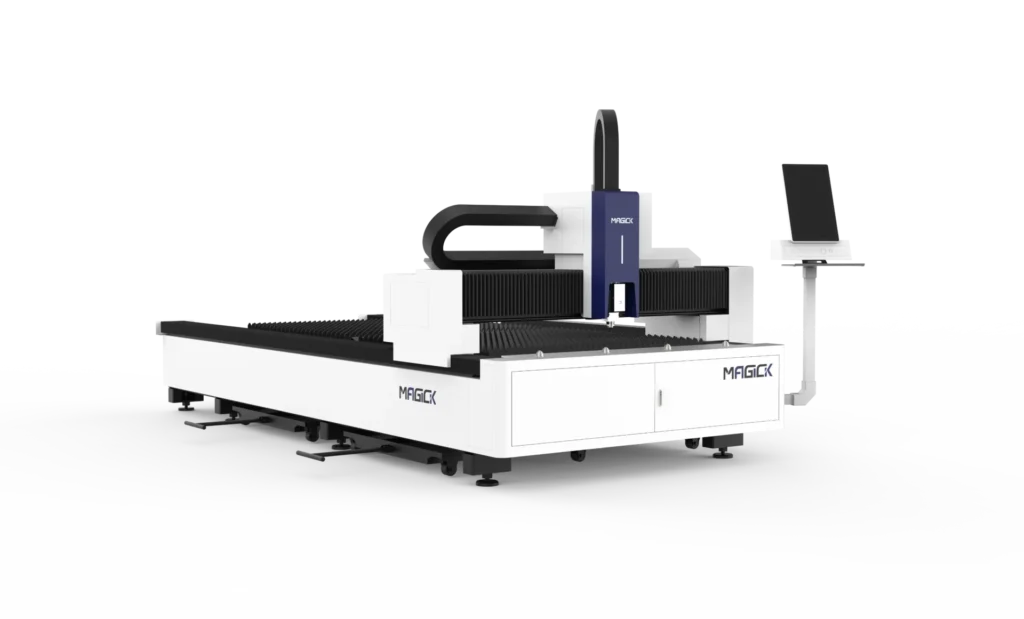

What Is an Open Single Platform Fiber Laser Cutting Machine?
In structural terms, an Open Single Platform Fiber Laser Cutting Machine is a CNC cutting system devoid of a fully enclosed safety cabinet and a dual-pallet automated exchange system. The material is loaded directly onto a single, stationary cutting bed.
Why does this matter to your bottom line? It drastically reduces the initial CapEx and minimizes the machine’s overall footprint, freeing up critical factory floor space. While automated enclosed systems are the standard for 24/7 lights-out manufacturing, the open single platform architecture is the undisputed workhorse for high-mix, low-to-medium volume processing where flexibility and rapid, unpredictable material changeovers are daily realities.
Engineering Reality: Inside the MK-S Open Single Platform Fiber Laser Cutting Machine
A machine is only as profitable as its uptime. The MK-S series is built on specific, verifiable engineering principles rather than generic promises of “durability.”

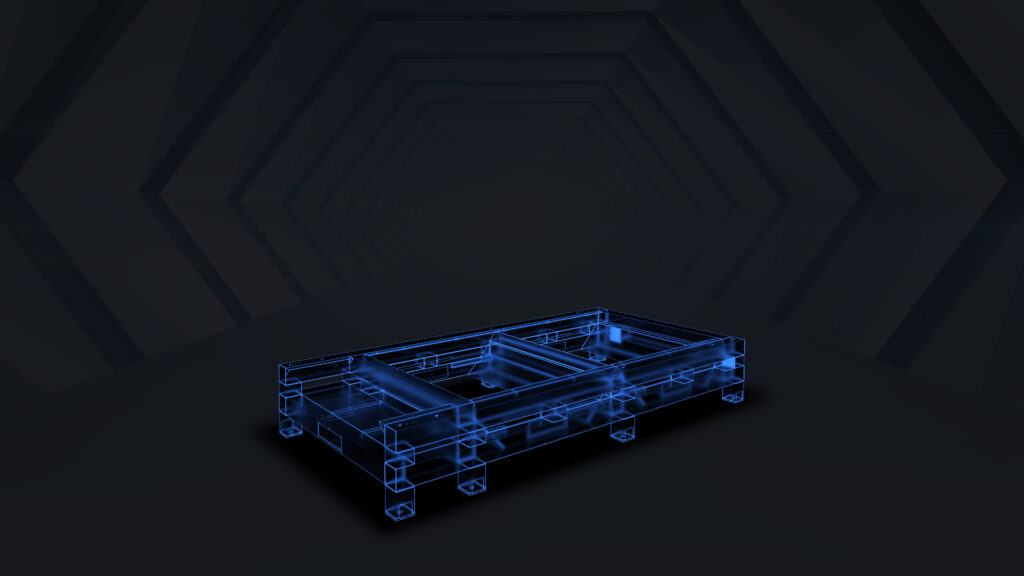

Heavy-Duty Welded Bed with Thermal Annealing
A high-power laser generates immense localized heat, and gantry movements cause severe kinetic stress. To prevent the structural deformation that plagues cheap machines, the MK-S utilizes a rational structural design featuring a heavy-duty bed subjected to high-temperature thermal annealing (typically around 600°C) to eliminate internal welding stress. This guarantees that your positioning accuracy remains locked in, preventing scrap rates from creeping up in year three or four.

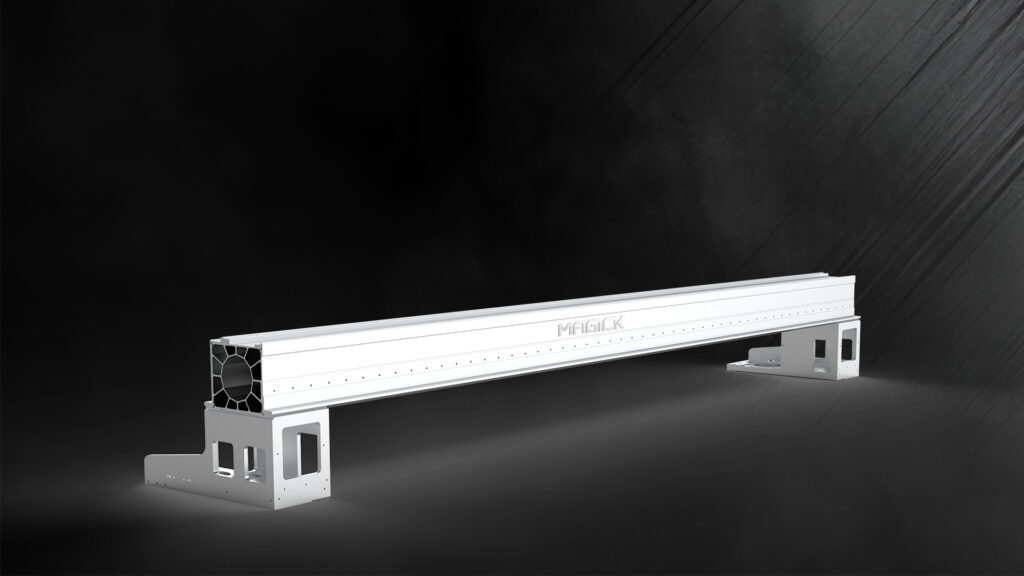

Engineered for Up to 30KW Laser Power
Many open platform machines are severely limited in frame rigidity, relegating them to thin-gauge cutting (under 3KW). The MK-S gantry and bed architecture are specifically engineered to handle the thermal and kinetic demands of up to 30KW laser sources. This means a shop can process 20mm+ thick carbon steel plates reliably without structural compromise.
Universal Compatibility with Mainstream Control Systems
Proprietary software is a liability. It restricts your ability to hire operators and inflates training costs. The MK-S system is highly compatible with lasers and control systems from mainstream, globally recognized brands. If an operator knows standard CNC laser software (like CypCut or FSCUT), they can run the MK-S on day one. This significantly lowers your training overhead and operational friction.

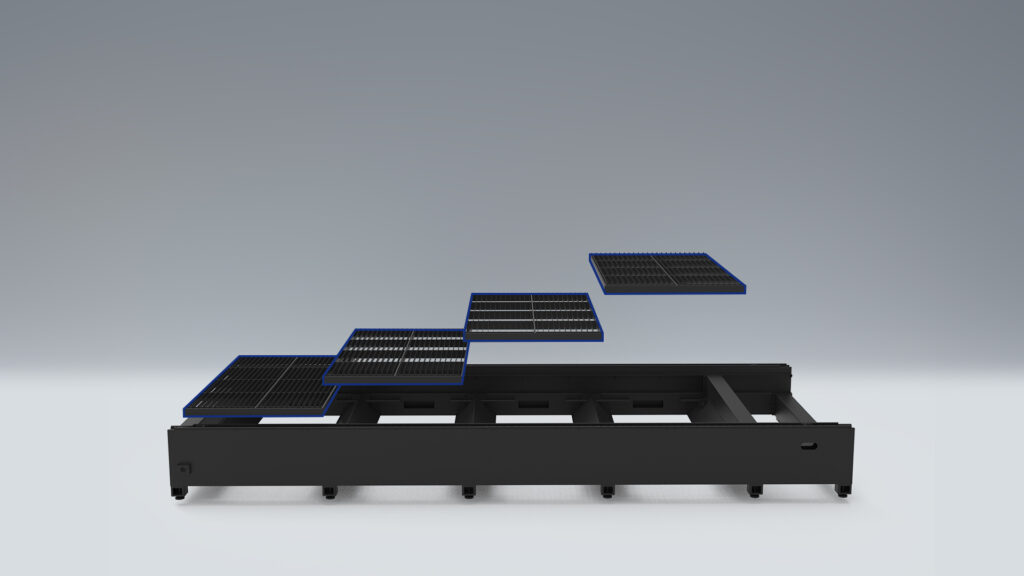

Scalable Architecture: Upgrades When You Need Them
Committing to an open system does not mean you are permanently locked out of automation or strict environmental compliance. The MK-S is modular. As your revenue grows or local environmental regulations tighten, the machine supports optional configurations, including retrofitting a full enclosure, integrating an exchange platform, or installing an upgraded zoned dust removal system to actively extract hazardous fumes.
Global Deployment Capabilities
For international facilities, the MK-S eliminates integration headaches. It features international voltage systems customization, meaning it plugs directly into your local power grid without the need for fragile, expensive external transformers. Furthermore, multi-language systems ensure your localized workforce can navigate the HMI without translation errors.
Technical Specifications and Available Models
Do not buy a machine size based on habit; buy it based on the most cost-effective sheet metal sizes available from your local steel suppliers. The MK-S is built in four dimensions:
| Specification | MK-3015S | MK-4020S | MK-6020S | MK-6025S |
| Laser output power options | 1500W–12000W | 1500W–12000W | 1500W–12000W | 1500W-12000W |
| Working area | 3100×1550mm | 4100×2100mm | 6200×2100mm | 6200×2600mm |
| Positioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Repeat Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Max Movement Speed | 120m/min | 120m/min | 120m/min | 120m/min |
| Max Acceleration | 1.2G | 1.2G | 1.2G | 1.2G |
Hard Performance Metrics:
- Laser output power options: Frame structurally supports up to 30KW.
Operational Realities: Where This Machine Wins
MK-4020S High-Power Fiber Laser Cutter Specifications:
- Processing Area: 4000 x 2000 mm (Optional customization available)
- Laser Source: Raycus RFL-C12000
- Control System: CYPCUT / FSCUT
- Chiller: S&A
- Laser Power: 12000W (Optional)
- Material Processing Thickness (at 12000W):
- Stainless Steel: 0-40mm
- Aluminum Alloy: 0-40mm
- Brass: 0-16mm
- Carbon Steel: 0-40mm
Trust is built on transparency. This machine is not designed for a fully automated, continuous-flow automotive production line. If you need a machine to run unattended for 48 hours, look at enclosed exchange-pallet models.
However, the MK-S dominates in specific industrial environments: heavy machinery manufacturing, custom fabrication shops, and metal parts processing.
The Unrestricted Loading Advantage
In a crowded job shop, you cannot always perfectly align a forklift. The completely open architecture allows operators to load heavy, awkward, or non-standard plates using overhead jib cranes from the sides or the rear. There are no safety cabins or hydraulic exchange tables blocking access.
Maintenance Accessibility
Downtime is your most expensive hidden cost. When a machine is open, components like the rack and pinion, linear guides, and the cutting bed slats are immediately accessible. Routine maintenance takes a fraction of the time compared to climbing inside a dark, enclosed cabin, keeping your OpEx low and your laser beam cutting.
How to Choose the Right Open Single Platform Fiber Laser Cutter
A poor specification choice will destroy your ROI. When configuring your MK-S, apply this rigid logic:
- Analyze Your True Material Mix: Look at your purchasing data over the last 12 months. If 85% of your work is 3mm to 6mm carbon steel, a 3000W or 6000W power source is your mathematical sweet spot. While the MK-S frame easily supports up to a 12000W laser source for heavy-duty applications (as shown above), over-specifying power for exclusively thin materials is a waste of capital. Choose the power source that matches your primary daily output.
- Calculate Idle Time: Because this is a single platform, the laser head must stop cutting while parts are unloaded and new sheets are placed. You must calculate this downtime into your hourly shop rate. If the idle time bottlenecks your entire facility, you need an exchange platform. If your operators can load/unload quickly enough to keep up with downstream bending and welding, the single platform is highly profitable.
- Future-Proofing the Frame: Even if you only need 3000W today, the fact that the MK-S frame supports up to 30KW means the mechanical foundation is vastly over-engineered for your current needs, ensuring decades of rigidity and the potential to retrofit a larger laser source later.
Final Thoughts
The Open Single Platform Fiber Laser Cutting Machine is a calculated tool for businesses that require high-precision cutting, heavy-duty stability, and maximum floor-space efficiency without the heavy capital burden of automated enclosures.
The MK-S series delivers verifiable ±0.02 mm accuracy, handles extreme laser power, and provides the immediate operational flexibility that dynamic fabrication shops demand to stay competitive.
Do not rely on guesswork for a six-figure capital investment. Contact our engineering team with your specific material types, thicknesses, and production volumes. We will provide a data-backed recommendation to ensure your next laser cutter becomes your most profitable asset.
