Maximize Tube Cutting ROI: The MK-6012T2C Economic Laser Solution for Smart Factories

For many expanding fabrication shops, the biggest bottleneck isn’t the laser itself—it’s the financial barrier to entry. If you are predominantly cutting standard 3mm thick tubes (round, square, or special shapes) and do not have a 24/7 massive-batch requirement, you don’t need a top-tier, multimillion-dollar system. You need a reliable, cost-effective workhorse.

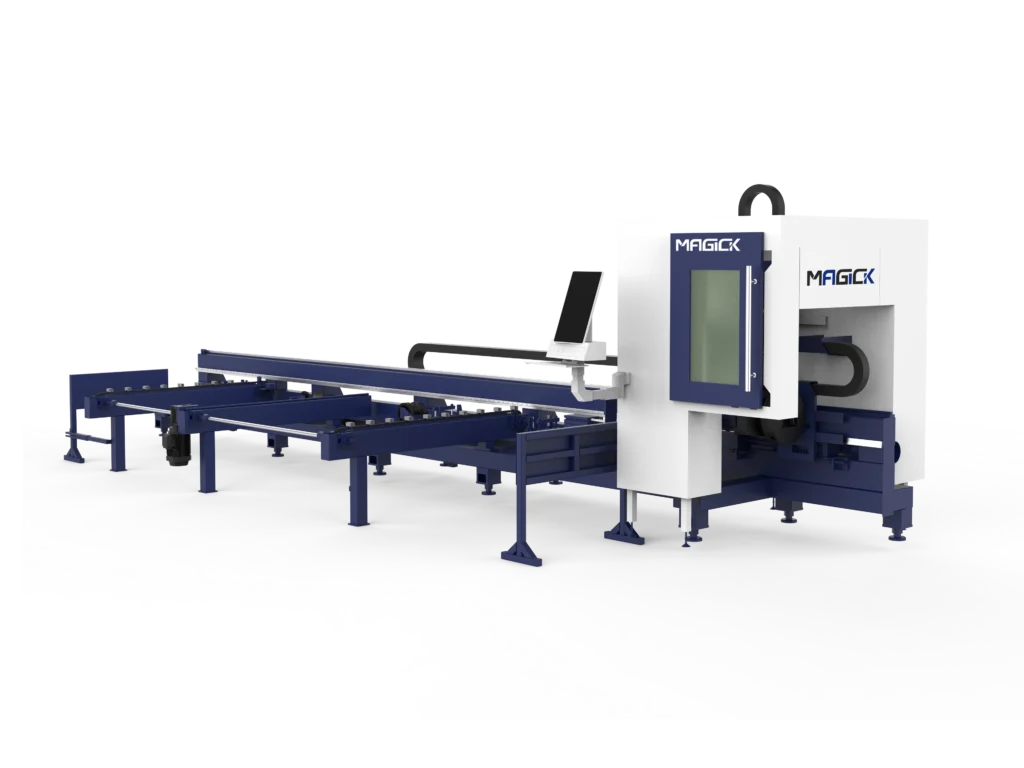

The MK-6012T2C is engineered precisely for this scenario. It provides industrial-grade fiber laser precision at a price point designed for smart, calculated business growth.

The Core Efficiency Debate: Semi-Auto vs. Fully-Auto Loading

This is the number one question we receive from buyers interested in the MK-6012T2C. Our side-hung structure allows for massive flexibility in material handling. We don’t force you into one solution; we help you choose the right ROI path.

Which One Delivers Your ROI?

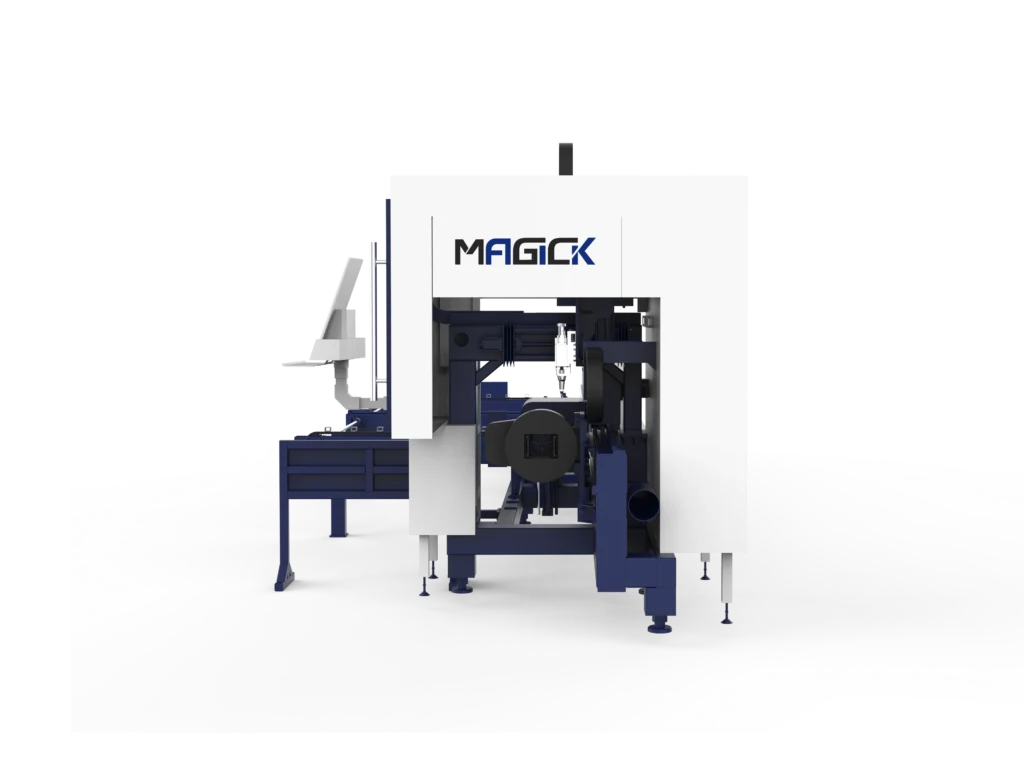

Choose Semi-Automatic Loading (Standard) If:

Your daily production involves frequent changes in tube specifications (e.g., cutting Round Φ50mm for two hours, then Square 40x40mm for the rest of the day).

Your total processing volume is moderate, and a single operator has time to manually place the next tube onto the side-hung rack while the current cut is in progress.

The ROI: Immediate, due to the lower initial equipment cost and high versatility.

Choose Fully-Automatic Loading (Upgrade) If:

You are dedicated to processing single-specification tubes in massive batches (e.g., thousands of identical 3-meter round Φ30mm tubes per week).

Your primary goal is to minimize idle time between cuts and maximize throughput with minimal labor intervention.

The ROI: Long-term, driven by sheer volume and labor cost savings over time.

High Stability, Low Footprint: Side-Hung Engineering

Floor space costs money. The MK-6012T2C uses an intelligent side-hung structural design. This choice lowers the machine’s center of gravity, ensuring exceptional stability during high-speed cutting. Even more critical for compact factories, this design minimizes the equipment’s overall width. You get rigid, high-precision processing capabilities without sacrificing valuable floor space.

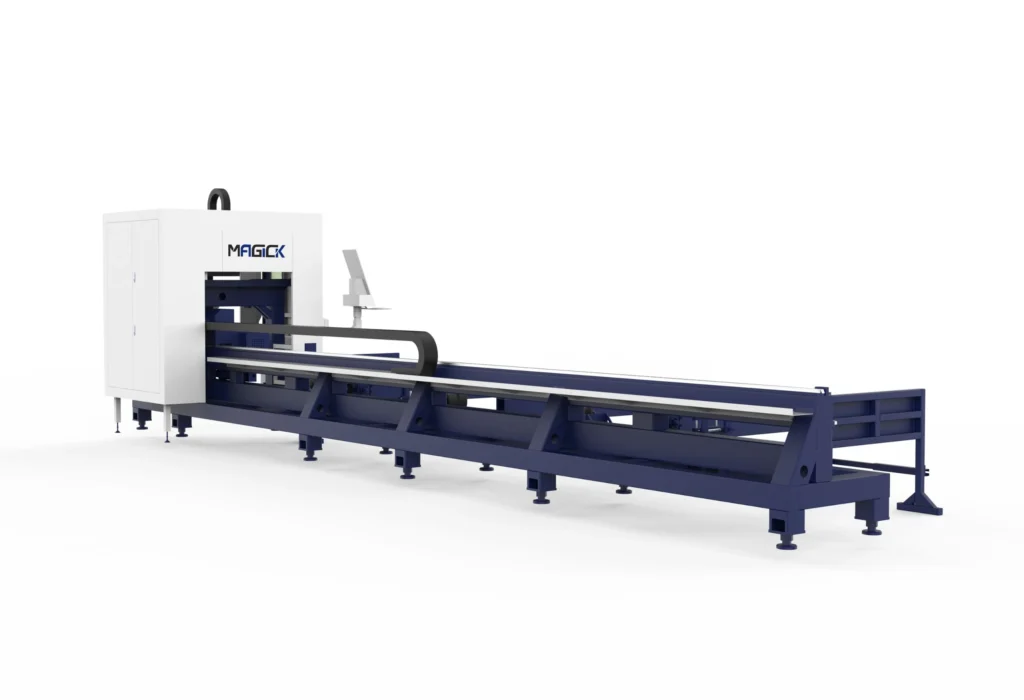

Semi-Automatic Loading (Standard/Budget-Friendly): Highly flexible for mixed-batch production. It simplifies the operational movements and allows operators to quickly adapt to multiple tube specifications (round, square, I-beam). It is the most cost-effective entry point for immediate ROI.

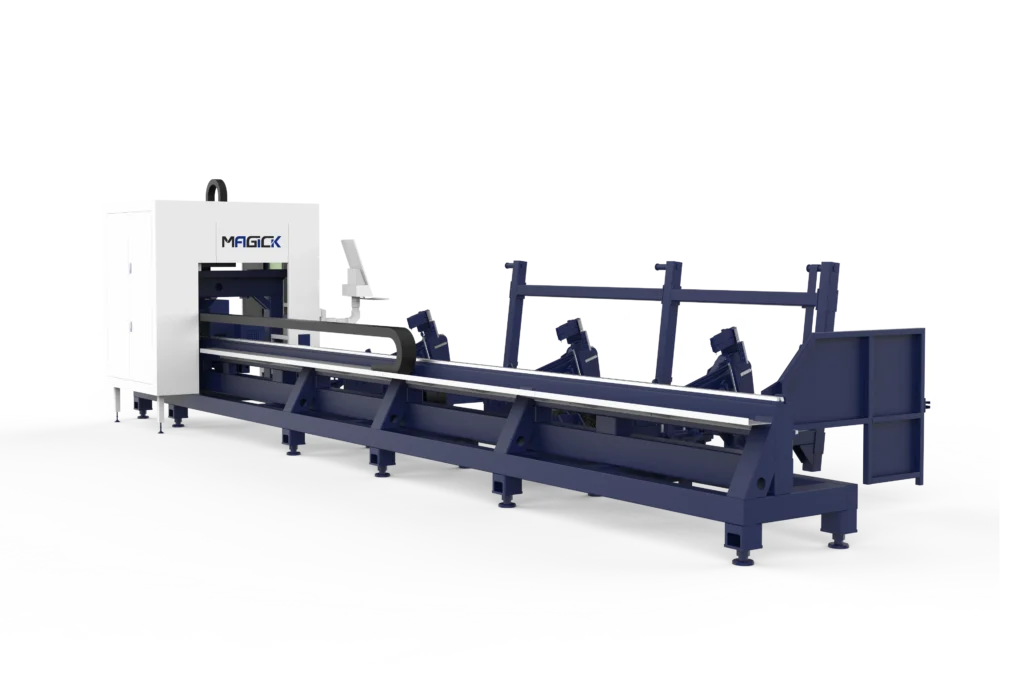

Fully-Automatic Loading (High-Efficiency Upgrade): If your production is heavily focused on processing large batches of specific round, square, or rectangular tubes, this upgrade allows for whole-bundle loading. It significantly reduces loading times, ensuring your laser is cutting, not waiting.

Smart Details That Drive Profitability

The “economic” label refers to the machine’s price, not its performance. We’ve packed the MK-6012T2C with professional-grade components that directly impact your yield and material costs:

Tailing Material Control (≤30mm): One of the most significant cost drivers in tube cutting is wasted material. Our system is designed to keep tailings extremely short—≤30mm (depending on tube diameter). Over thousands of cuts, this saving alone can significantly offset the machine’s operational costs.

Versatile Chuck & Follow-up Support: The robust 120mm chuck handles round Φ15-120mm and square 15-80mm (extendable up to 120mm square with follow-up support upgrade) effortlessly.

Precision and Speed: Available in 1500W or 3000W laser power, utilizing a reliable rack and pinion transmission to deliver a positioning accuracy of ±0.03mm.

The Ultimate Cost-Performance Balance

The MK-6012T2C isn’t just about saving money; it’s about making a smart, calculated investment. If your shop needs to transition from inefficient plasma or band saw cutting to high-profit laser precision without breaking the bank, this is your solution.

High-Level Technical FAQ: MK-6012T2C Laser Tube Cutting Machine

1. Structure & Footprint

Q: The machine is nearly 9 meters long. What are the footprint and installation requirements for our facility?

The overall dimensions of the MK-6012T2C (fully automatic model) are 8900 × 2800 × 2200mm. To maximize your floor space efficiency, we utilize an innovative side-mounted structural design. This not only lowers the center of gravity—ensuring exceptional bed stability for high-speed cutting (±0.3mm precision)—but also significantly reduces the operational width required, leaving more room for your internal logistics and material handling.

2. Loading Systems & Production Matching

Q: Should I choose the semi-automatic or fully automatic loading system?

This depends entirely on your production mix and budget:

• Semi-Automatic (Cost-Effective / High-Mix, Low-Volume): Features a streamlined mechanical design with a near-zero failure rate. Its biggest advantage is flexibility. If you frequently switch between different tube profiles (e.g., angle steel, channel steel, custom profiles) throughout the day, this is the most efficient choice.
• Fully Automatic (High Throughput / Volume Production): If your business focuses on processing large batches of standard round, square, or rectangular tubes, this system supports whole-bundle loading. It drastically cuts down material handling time and maximizes machine uptime, perfect for pure production efficiency.

3. Chuck Capacity & Limitations (Critical Specs)

Q: What is the maximum tube capacity for your standard 120mm chuck?

This depends on the specific support mechanism configured:

• Round Tubes: All configurations can stably clamp and cut diameters from 15mm to 120mm.
• Square/Rectangular Tubes (Crucial Distinction):
  • Standard Configuration (Reducing Wheel Support): Due to the physical shape of the reducing wheels, the capacity for square/rectangular tubes is reduced. The standard 120 chuck can only clamp square tubes up to 80mm.
  • Upgraded Configuration (Follow-up Support): By upgrading to the follow-up support system, you unlock the full capacity of the chuck, allowing you to process square tubes up to 120mm (and rectangular tubes with a diagonal ≤170mm). (Note: If you need to process square tubes larger than 120mm, we offer chuck upgrades to 160mm, 240mm, and up to 360mm.)

4.Open-Profile Steel Processing

Q: Can this machine process open-profile steel like I-beams or C-channels?

Yes. With the standard 120mm chuck configuration, the maximum supported size for I-beams, channel steel, and angle steel is 80mm (8#). If you require larger profile processing, we highly recommend upgrading to the “Follow-up Support + Precision Chuck” configuration to guarantee clamping stability and rotational precision for open profiles.

5. Material Utilization & Precision

Q: How does the machine perform regarding tailing waste and cutting accuracy?

• Tailing Control: We keep the tailing length to ≤30mm (depending on tube diameter and nesting software), which leads the industry in this machine class. For high-volume production, this results in massive material cost savings.
• Precision: Cutting accuracy is maintained at ±0.3mm, with a repositioning accuracy of ±0.1mm/m. Driven by a rack and pinion system, HIWIN linear guides, and top-tier servo motors (Inovance/Yaskawa), the machine ensures zero deviation even during continuous operation.

6. System Modularity & Upgrades

Q: If my initial budget is limited, can the system be upgraded later?

Yes. We offer a highly modular ecosystem with 8 distinct configuration paths (ranging from the basic “Reducing Wheel + Semi-Auto” to the fully loaded “Follow-up Support + Full-Auto + Follow-up Receiving Frame”). You can start with a configuration that fits your current budget. Additionally, the receiving frame (standard 1.5m) and other non-standard features can be fully customized by consulting our engineering team in advance.
