Go Big: Why Heavy Processing Needs Ground Rail Lasers

For heavy industries such as steel structures, bridge construction, construction machinery, shipbuilding, wind power, and rail transit, processing oversized and ultra-thick metal plates has always been a significant bottleneck. Traditional single-table cutting machines simply cannot handle the sheer size and weight required for large-scale components like crane arms, ship decks, or wind tower flanges.

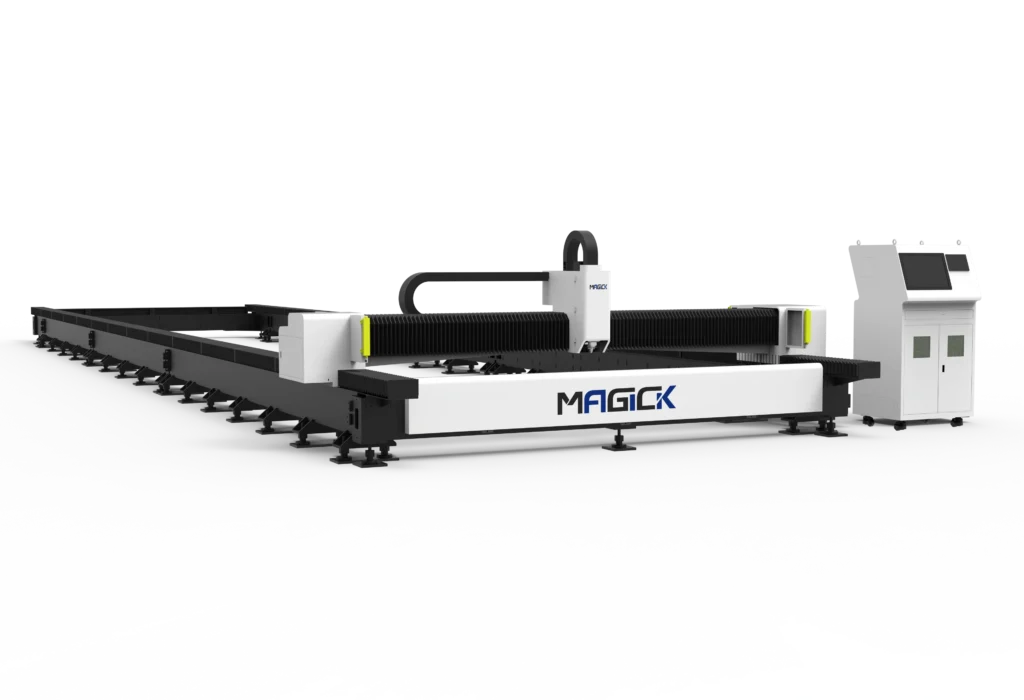

The ultimate solution for high-efficiency, large-format cutting is the Ground Rail Laser Cutting Machine (Gantry Type).

Breaking Physical Limits: Modular Design & Infinite Length

Unlike traditional machines, the ground rail structure separates the cutting bed from the working table. The gantry beam travels along the ground rails (Y-axis), transferring the massive weight of the metal plates directly to the foundation rather than the machine frame.

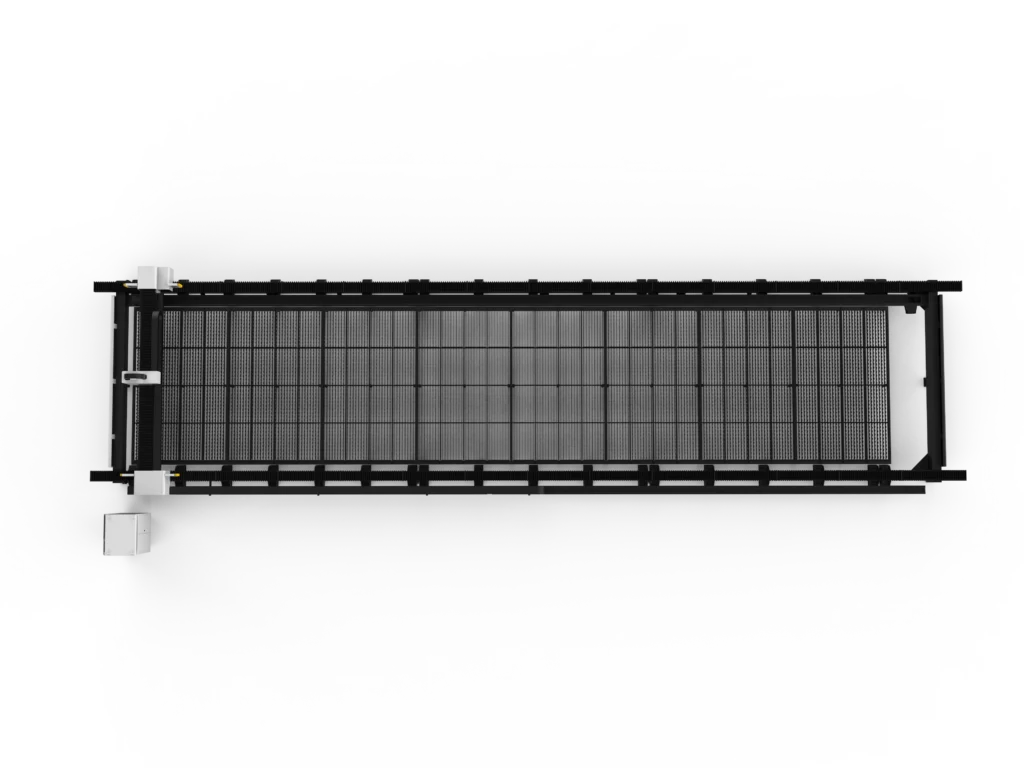

Customizable Ultra-Large Format: The modular bed design breaks traditional size restrictions, allowing for customizable lengths ranging from 6 to 48 meters, and widths from 2.5 to 5 meters.

Double Your Efficiency: The extreme length allows multiple plates to be placed simultaneously. Operators can load and unload materials on one end while the machine continues cutting on the other, drastically improving batch processing efficiency.

Unwavering Precision Under Heavy Loads

A common fear with long-stroke cutting is the loss of precision over time. This machine eliminates that risk through advanced structural engineering:

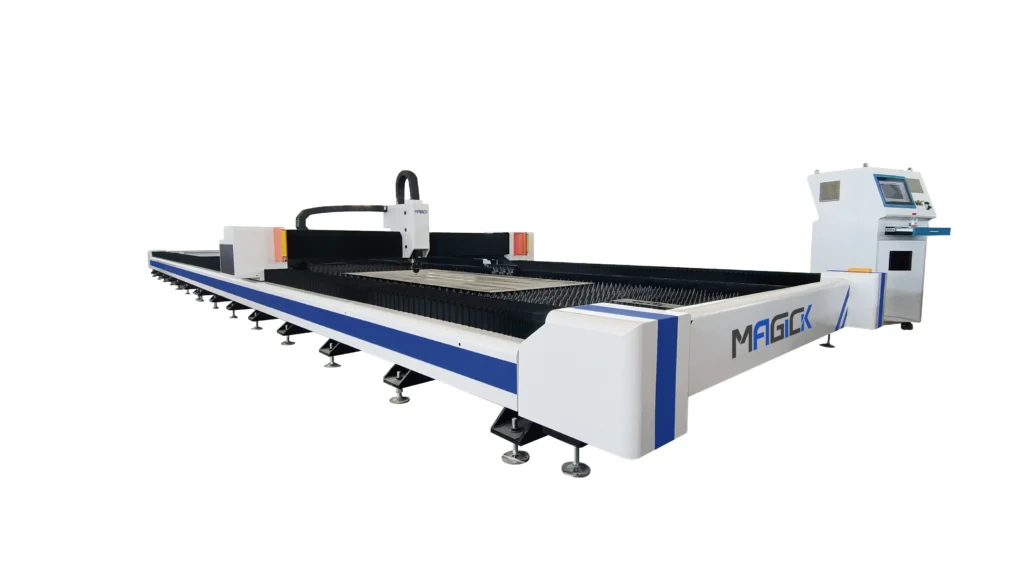

Adaptive High-Rigidity Beam: The gantry beam features an elastic adaptive structure. This automatically compensates for environmental changes, ensuring stable machining accuracy even during high-speed operations. The positioning accuracy reaches ±0.05mm/m.

Z-Axis Rack and Pinion Transmission: Because the Z-axis requires frequent lifting under heavy loads, traditional ball screws are prone to deflection and loss of precision over long strokes. We utilize a rack and pinion transmission for the Z-axis, comprehensively outperforming ball screws in speed, load capacity, and long-term stability.

Process Revolution: Beveling & Eco-Friendly Operation

Equipped with high laser power ranging from 12KW to 60KW, this machine effortlessly cuts thick carbon steel and stainless steel with smooth edges and excellent perpendicularity. Furthermore, it offers process upgrades that save immense labor costs:

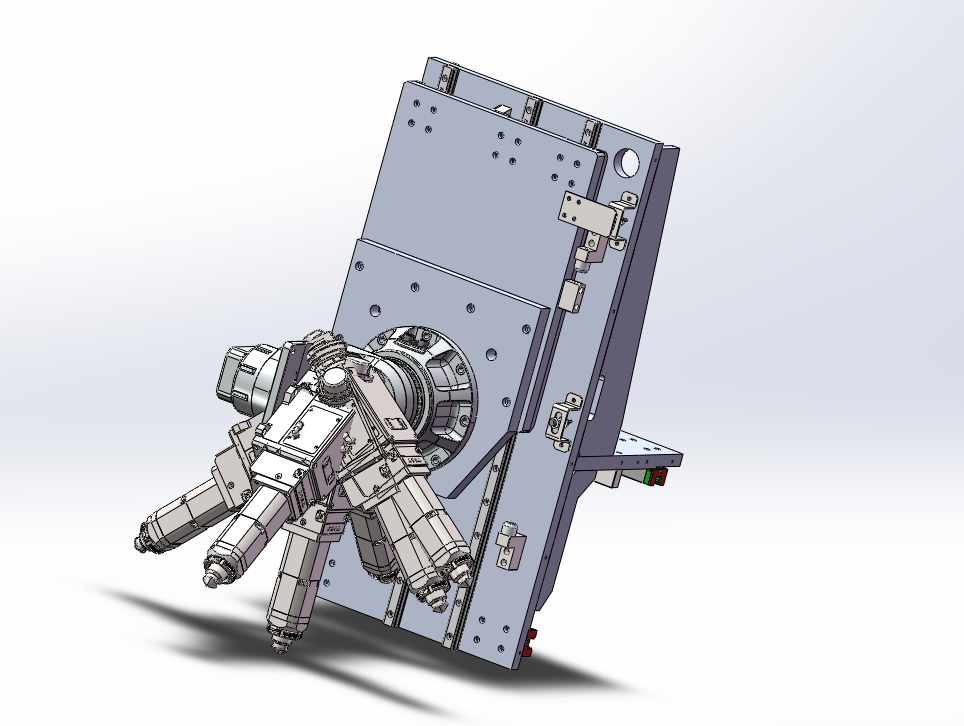

One-Step Beveling (Optional): The multi-axis head can directly cut V, X, Y, and K-shaped bevels. This eliminates the need for secondary processing, manual marking, and edge milling, significantly reducing pre-welding preparation costs.

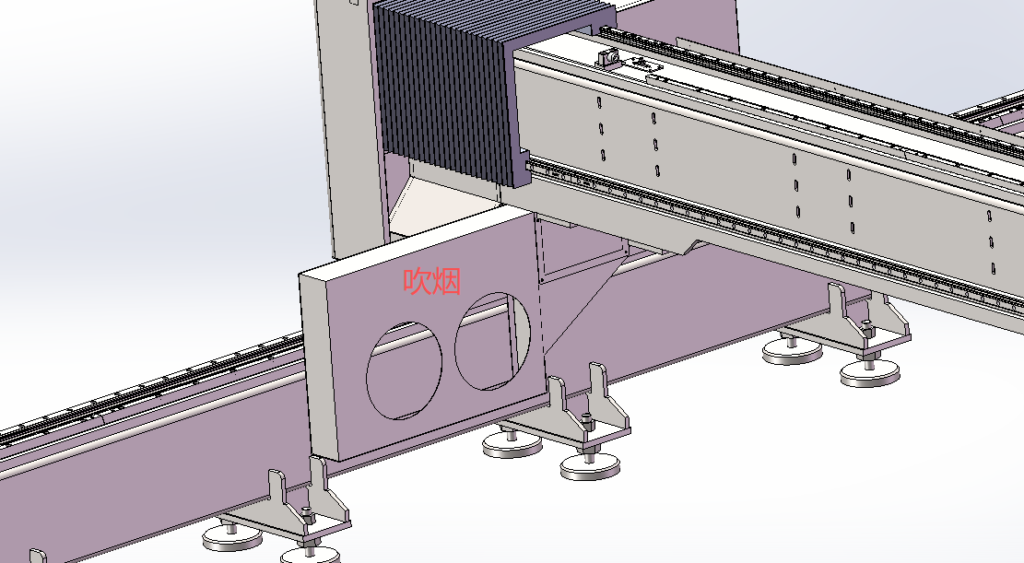

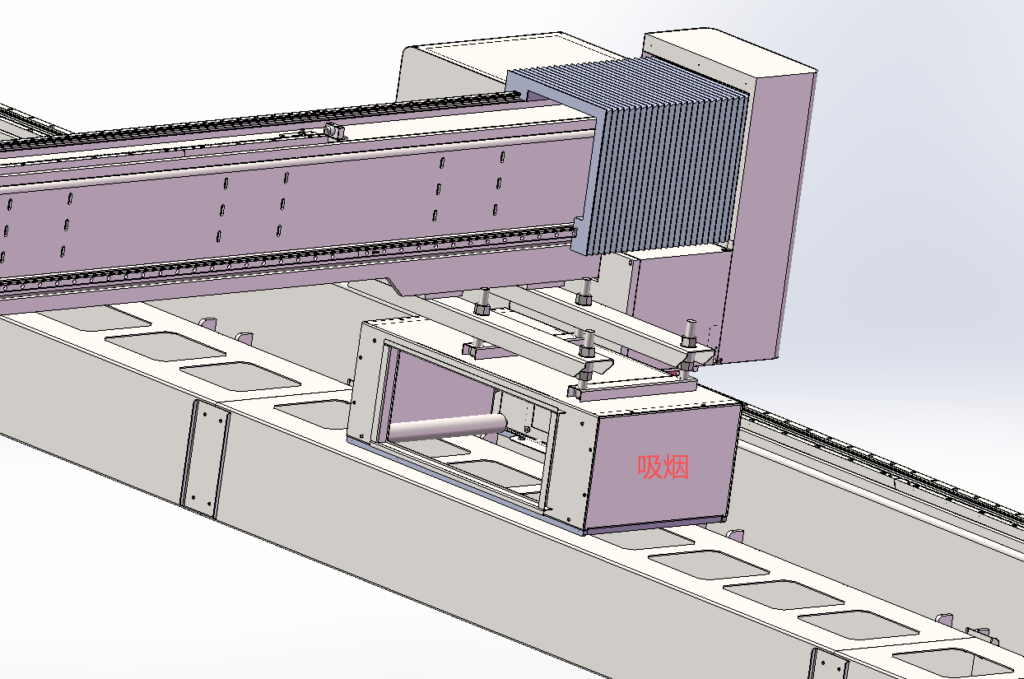

Intelligent Follow-up Dust Extraction: High-power cutting generates massive fumes. Our system uses a “follow-up blowing and suction” structure. With a blowing device on one side and a suction device on the other moving synchronously with the gantry, dust removal is highly efficient.

Powder Marking Device (Optional): Seamlessly compatible, ensuring clear plate information tracking, meeting the strict requirements of the shipbuilding industry.

Ground Rail vs. Single Table: Making the Right Investment

Ground Rail Type: Features an ultra-long format, exceptional load-bearing capacity, and thick plate mastery. It requires a larger footprint and higher investment, but it is the indispensable choice for heavy industry.

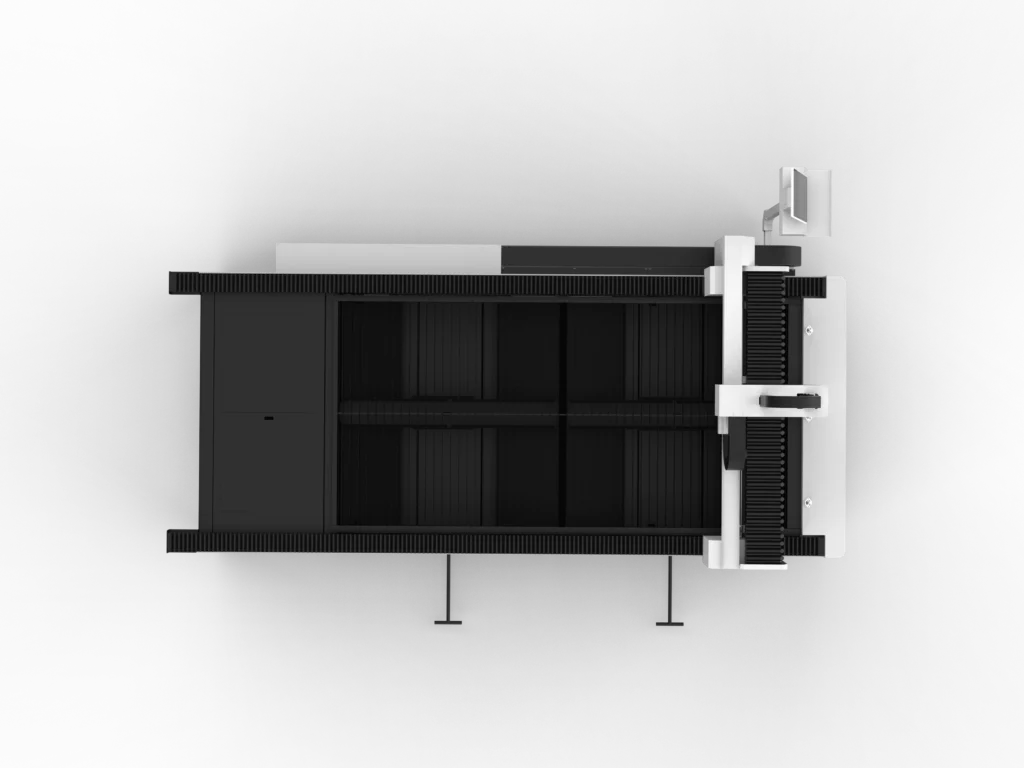

Single Platform Type: Features a smaller format, smaller footprint, and lower cost. Best suited for small to medium sheet metal processing.

High-Level Technical FAQ

Q1: Is it acceptable to lay firebricks flat underneath the machine?

We strongly advise against laying firebricks flat. Flat bricks disrupt the aerodynamic flow of the dust extraction system and cause hot slag to accumulate directly under the cutting area. As shown in the image above, MAGICK utilizes a proprietary V-shaped (angled) refractory brick layout. This intelligent engineering deflects extreme heat, guides molten slag to the sides for easy cleaning, and ensures unobstructed airflow for our high-efficiency suction system.

Q2: Which industries benefit most from this technology?

This equipment is specifically engineered for heavy-duty industrial sectors requiring high-precision processing of oversized metal plates:

Steel Structures & Bridges: Processing of large connection plates and box beams.

Heavy Machinery: Manufacturing components for cranes, excavators, and mining equipment.

Energy & Shipbuilding: Fabrication of wind tower sections, flanges, and ship hull frameworks.

Railway Transit: Production of specialized chassis and bogie components.

Q3: Which configurations are “Must-Haves” for optimal performance?

To ensure structural stability and cutting quality, the following features are critical:

High-Power Laser (12kW–60kW): Essential for achieving clean, vertical cuts on thick plates.

Rack and Pinion Z-Axis: Unlike ball screws, a rack and pinion system prevents “flexing” over long travels, maintaining precision during frequent high-speed lifting.

Follow-up Dust Extraction: A “push-pull” ventilation system that moves with the gantry is vital to clear smoke that would otherwise interfere with the laser beam.
